BFIA BORA Basic surface-induction-glass-ceramic-cooktop with cooktop extractor – exhaust

Product information

Cooktop

  • automatic heat up function
  • bridging function
  • Power setting for all cooking zones
  • Timer function
  • residual heat display
  • pan size recognition
  • Pause function
  • warming function
  • childproofing feature
  • safety shut-down
  • Power management is only possible at the front or rear on each side

Extraction system

  • Energy-saving fan (EC motor)
  • Freely adjustable power control
  • Automatic cooktop extractor function
  • Automatic after-run
  • safety shut-down
  • Interface for external devices via Home In or Home Out
  • power setting
  • Suitable for :

Documents

Technical data

Maximum air volume 697.3 m³/h
Maximum static pressure 372 Pa
Supply voltage 380 – 415 V 2N/3N
Front cooking zone dimensions 230 x 230 mm
Front cooking zone power 2100 W
Supply voltage 220 – 240 V
Connection on the exhaust side BORA Ecotube
Power levels 1 – 9, P
Front cooking zone power setting 3700 W
Frequency 50 / 60 Hz
Maximum power consumption 7.6 kW (4.4 kW)
Fuse protection / power supply 3 x 16 A
Back cooking zone dimensions 230 x 230 mm
Fuse protection / power supply 2 x 16 A
Fuse protection / power supply 1 x 32 A

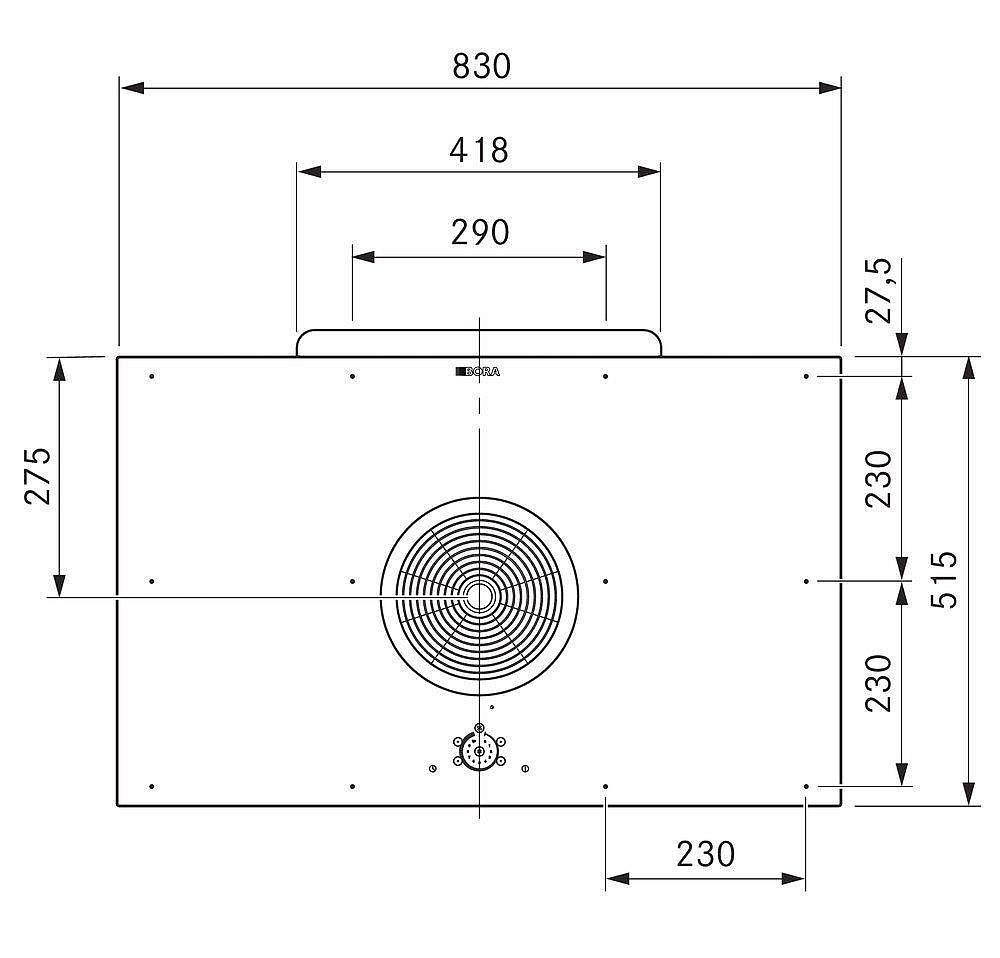

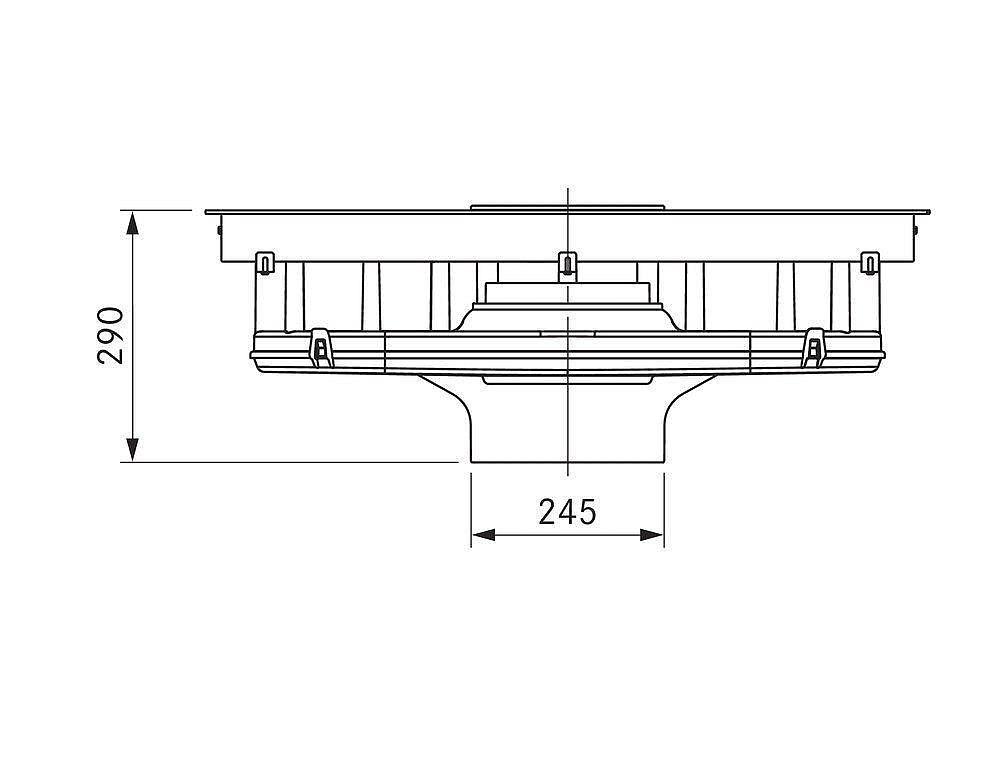

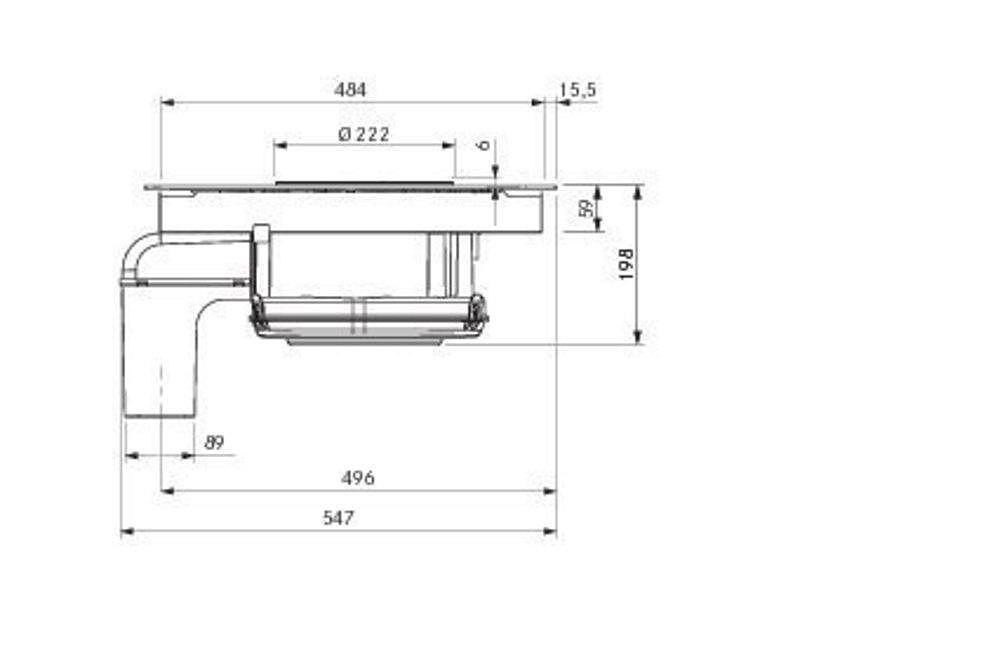

Dimensions (WxDxH) 830 x 515 x 198 mm
Back cooking zone power 2100 W
Back cooking zone power setting 3700 W
Weight (incl. accessories/packaging) Approx. 25 kg
Material Oberfläche SCHOTT CERAN®
Power levels 1 – 9, P
