| Maximum air volume |
624 m³/h |
| Supply voltage |
380 – 415 V 2N/3N |
| Supply voltage |
220 – 240 V |
| Frequency |
50 Hz |
| Maximum power consumption |
7.0 kW |
| Fuse protection / power supply |
3 x 16 A |
| Fuse protection / power supply |
2 x 16 A |
| Fuse protection / power supply |
1 x 32 A |
| Weight (incl. accessories/packaging) |
25 kg |

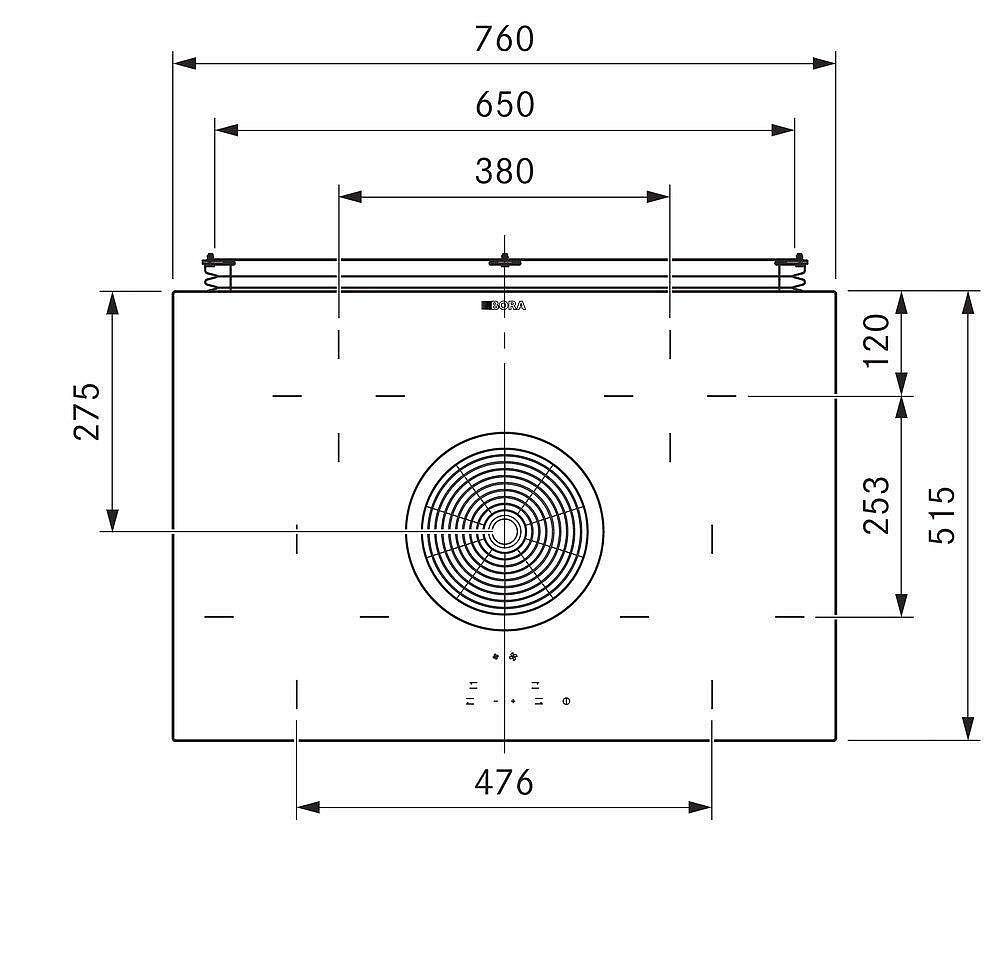

| Dimensions (WxDxH) |
760 x 515 x 196 mm |
| Power levels |
1 – 9, P |
| Front cooking zone dimensions |
Ø 210 mm |
| Front cooking zone power |
2300 W |
| Front cooking zone power setting |
3000 W |
| Back cooking zone dimensions |
Ø 140 mm |
| Back cooking zone power |
1200 W |
| Maximum static pressure |
341 Pa |
| Power levels |
1, 2, P |
| Recirculation connection |
650 x 90 mm |
| Filter medium |
Activated charcoal filter with ion exchanger |
| Material |
Filter panel with fine filter |
| Filter area |
2 x 0.4 m² |
| Service life |
Max. 150 h / 1 year |
| Material Oberfläche |
SCHOTT CERAN® |
